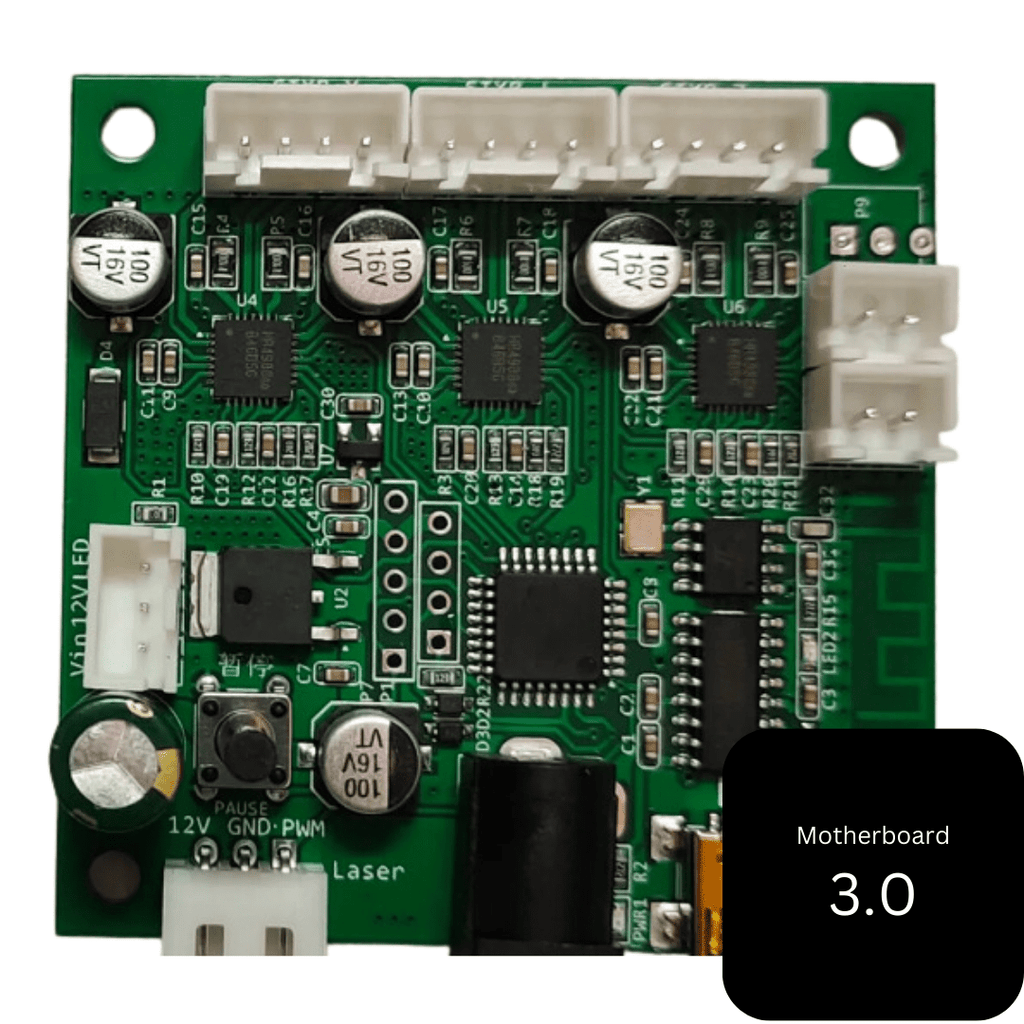

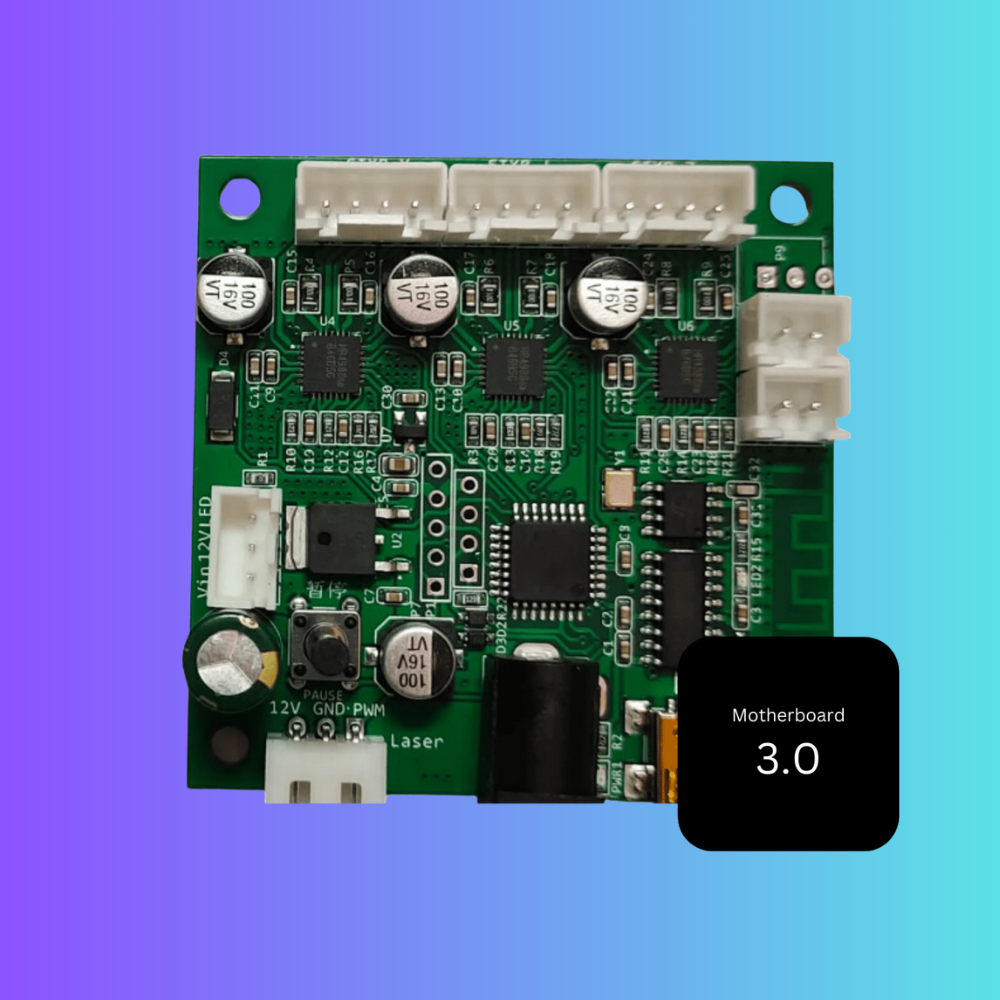

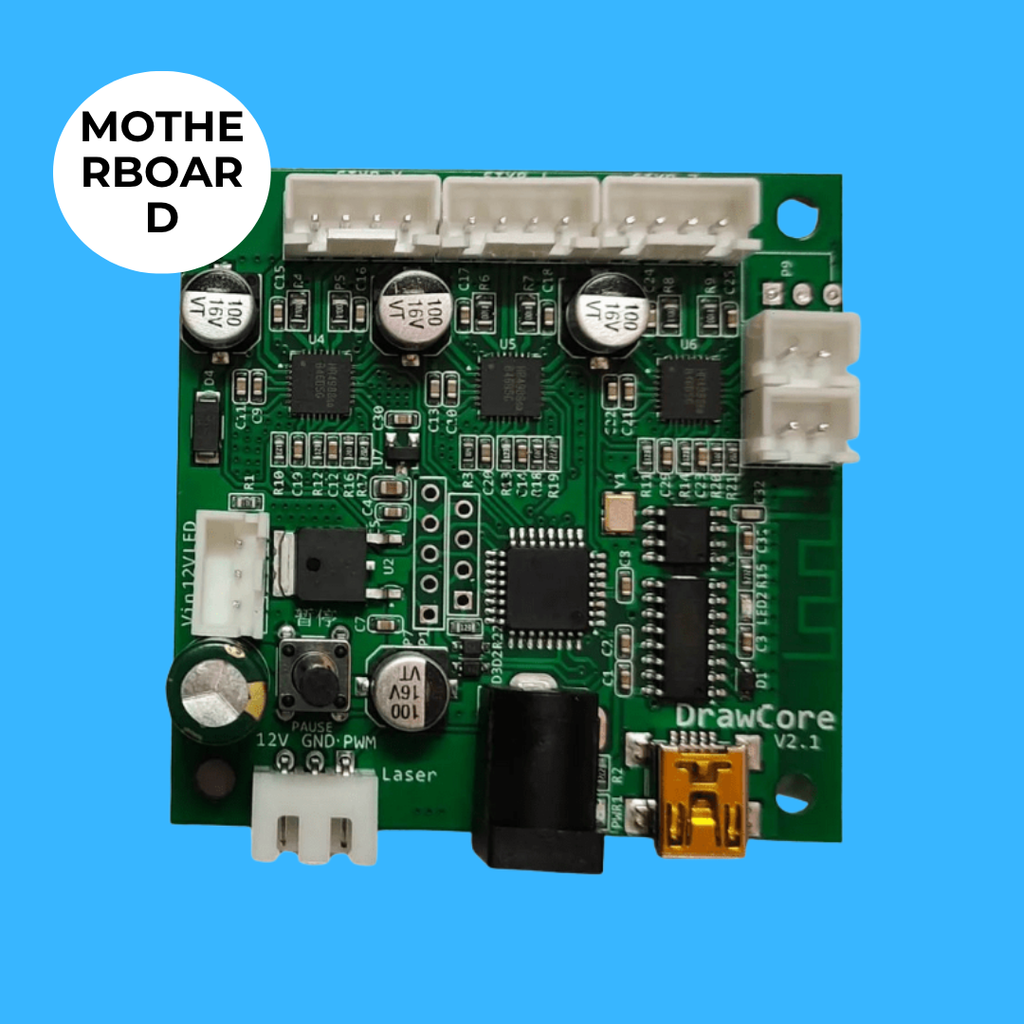

Motherboard for iDraw Pen Plotters – Upgraded Controller Board for iDraw H/2.0/1.0/H SE

High-performance motherboard for pen plotters designed for iDraw 1.0, 2.0, and H, H SE series. This advanced motherboard for iDraw pen plotters features integrated drivers, plug-and-play USB support, built-in Bluetooth, and enhanced power stability. As a next-gen iDraw motherboard, it improves heat dissipation, safety protection, and system compatibility for smoother and more reliable plotting performance.

Key Features

Integrated Driver Architecture Upgrade

This motherboard integrates the HR4988 driver module, eliminating the need for external driver installation. It supports stable motor control and allows advanced users to replace drivers such as TMC22xx if needed. Compared with older versions, it significantly improves system integration and reduces wiring complexity for pen plotter setups.

Plug-and-Play USB Compatibility

Equipped with the CH9340 USB chip, this motherboard for iDraw pen plotters supports Windows 10+, macOS, and Linux without requiring additional driver installation. Users can simply connect and start working immediately, improving workflow efficiency and reducing setup time for both beginners and professionals.

Enhanced Thermal and PCB Design

The upgraded 4-layer PCB structure provides superior heat dissipation and electrical stability compared to older 2-layer designs. This improvement ensures consistent performance during long plotting sessions, reducing overheating risks and extending the overall lifespan of the motherboard for pen plotters.

Built-in Bluetooth Integration

Unlike previous versions that require external Bluetooth modules, this upgraded iDraw motherboard includes an integrated Bluetooth chip. This allows wireless connectivity out of the box, enabling more flexible control options and reducing hardware clutter inside the system.

Advanced Power Protection System

The motherboard includes TVS diodes and a 680uF capacitor to stabilize power input and prevent voltage surges. This significantly improves operational safety by protecting sensitive electronic components, ensuring long-term reliability for continuous pen plotting and drawing tasks.

Specification

• Product Type: Control Motherboard / Mainboard
• Compatibility: iDraw 1.0 / iDraw 2.0 / iDraw H Series/ iDraw H SE Series
• Driver Chip: Integrated HR4988 (replaceable with TMC22xx series)
• USB Chip: CH9340
• System Compatibility: Windows 10+, macOS, Linux (plug-and-play)
• Bluetooth: Built-in integrated module
• PCB Structure: 4-layer PCB (upgraded)
• Power Protection: TVS diodes + 680uF capacitor
• Heat Dissipation: Enhanced thermal design
• Previous Version Comparison: External Bluetooth + CH340 + 2-layer PCB
• Function: Motion control for pen plotters / handwriting machines
• Installation: Direct replacement motherboard

Top 10 FAQs

1. What is this motherboard for pen plotters used for?
It is the main control board for iDraw pen plotters, managing motor movement, signal processing, and system operations for drawing and handwriting tasks.

2. Is this motherboard for iDraw pen plotters compatible with all models?
Yes, it supports iDraw 1.0, iDraw 2.0, iDraw H SE series and iDraw H series machines.

3. Do I need to install drivers to use this idraw motherboard?
No, it uses the CH9340 USB chip, which supports Windows 10+, macOS, and Linux without driver installation.

4. Can I replace the motor drivers on this motherboard?
Yes, while it comes with integrated HR4988 drivers, advanced users can replace them with TMC22xx series drivers if needed.

5. Does this motherboard support Bluetooth connection?
Yes, motherboard for 2.0 and H includes a built-in Bluetooth chip, so no external module is required.

6. What is the advantage of the upgraded PCB design?
The 4-layer PCB improves heat dissipation, stability, and long-term reliability compared to older 2-layer boards.

7. What protections does this motherboard include?
It features TVS diodes and a 680uF capacitor to protect against power surges and stabilize voltage.

8. Is this motherboard for pen plotters easy to install?
Yes, it is designed as a direct replacement board for compatible iDraw systems with straightforward installation.

9. What is the difference between old and new versions?
The new version integrates drivers, Bluetooth, and improved USB compatibility, while the old version requires external modules and drivers.

10. Why choose this idraw motherboard upgrade?
It offers better stability, plug-and-play usability, improved safety, and upgraded hardware design for more reliable plotting performance.
